Seek Thermal Compact PRO/XR Imaging Camera Infrared Imager Night Vision Android/ IOS /Type-C/USB-C Plug PCB Fault Diagnosis Tool

  • is_customized: No
  • Size: 2.5 x 4.4 x 2.5 CM
  • Package: Case
  • Model Number: Seek thermal
  • Application: Computer Tool Kit
  • DIY Supplies: ELECTRICAL
  • Type: Combination
  • Brand Name: DIYPHONE
  • Origin: Mainland China
  • Item name: Seek thermal Compact Pro
  • Usage: Seek Thermal Camera Infrared Imaging Tool
  • Fit: for Android IOS Smartphones
  • Theory: Temperature Sensor
  • Feature 1: Infrared Thermometer
  • Feature 2: Night vision function
  • Feature 3: Digital
  • Type: Compact/ Compact PRO/Compact XR
  • Style: Handheld
  • Features: 100% New and High quality

Seek Thermal Imager Compact /Compact PRO / Compact XR Thermal Imaging Camera infrared imager Night vision for iPhone/ AndroidRepair

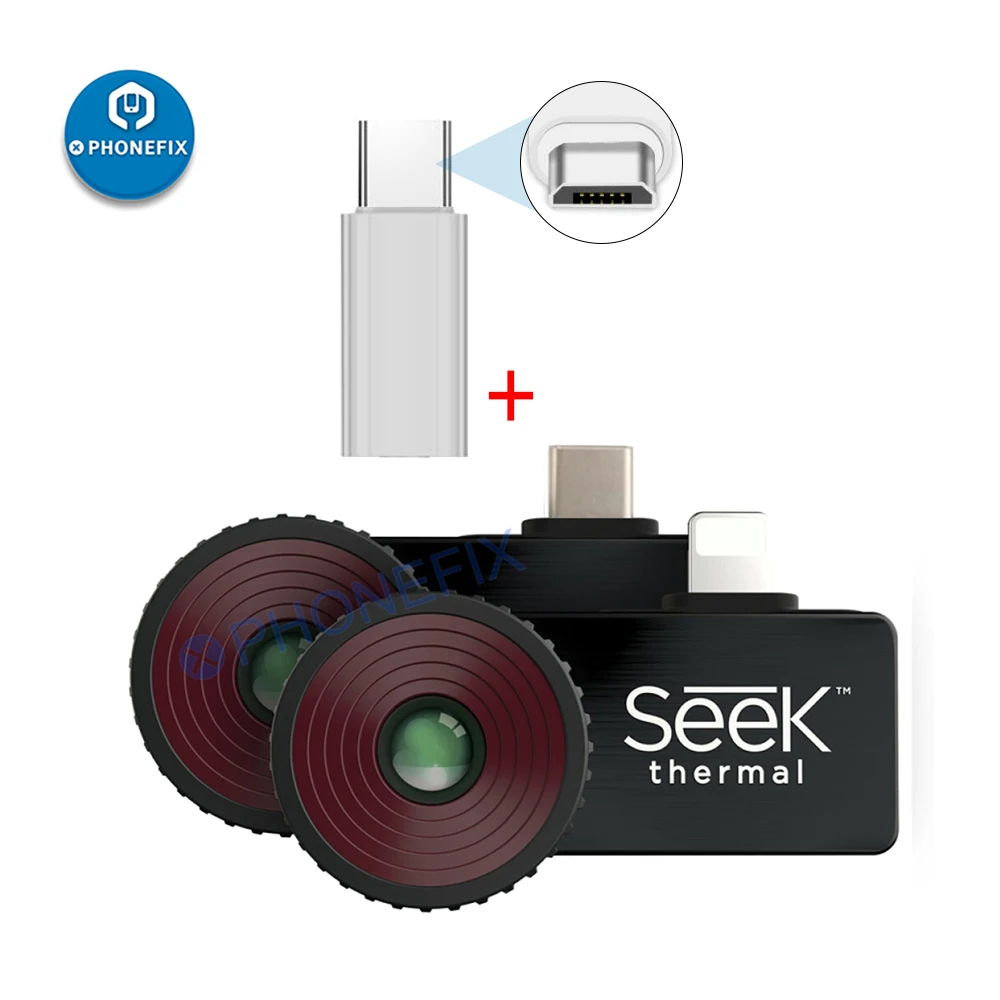

If you purchase Type C seek thermal imager ( Type C compact pro/ compact XR /Compact ) and (AndroidCompact pro / Compact XR / Compact ). we will send an adapter (Type C to Micro USB ) to you. So you can use it for Smartphone with Micro USB.


Applicable models:
Support iphone 5s above all models. Exclude iphone 5 and iphone 5c
Support Android system 4.3 above and phone with OTG function.

SEEK official did not provide the accuracy of temperature measurement.
The actual measurement from the seller is summarized as follows:
1. In normal temperature, the measurement data error is small.
2. In low temperature and high temperature environment, the data measured error is larger. The measurement data not be reference.



It can be used in searching, rescuing, exploration of heat source, equipment failure finding, power cable and joint heat failure search. The new Compact PRO thermal imaging camera supports Android/iOS smartphones.

As a compact device, it is equipped with a temperature measurement using thermal sensor array, the ℉ range from 40 to 626 ℉ (- 40 ℃ and 330 ℃). CompactPRO has a wide-angle lens with a total size of 1 x 1.75 by 1 inch (about 2.5 x 4.4 x 2.5 CM), with a sensor resolution of 320 by 240

The thermal imaging camera can be inserted directly into the phone’s port, which can be stored directly in the device’s built-in storage. The new mobile apps are already on display in the Google Play Store and the Apple App Store, with a personalized interface design. Application provides many functions, including selection of want to see the heat level, different color (such as gray and low contrast), set the 16:9 or 4:3 format, and 7 kinds of user mode.

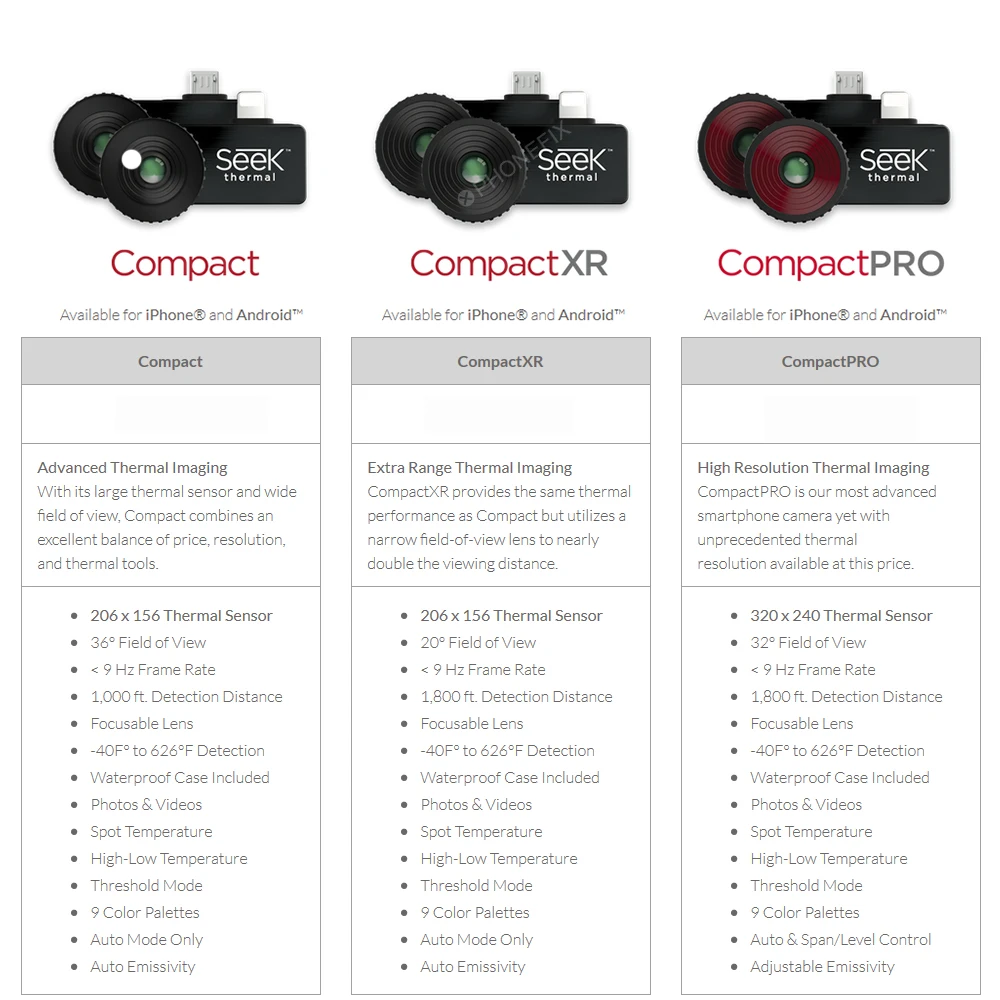

1. Seek Thermal Compact Pro for IOS / Android TYPE-C


320 x 240 Thermal Sensor
32° Field of View
<9 Hz Frame Rate
1,800 ft. Detection Distance
Focusable Lens
-40F° to 626°F Detection

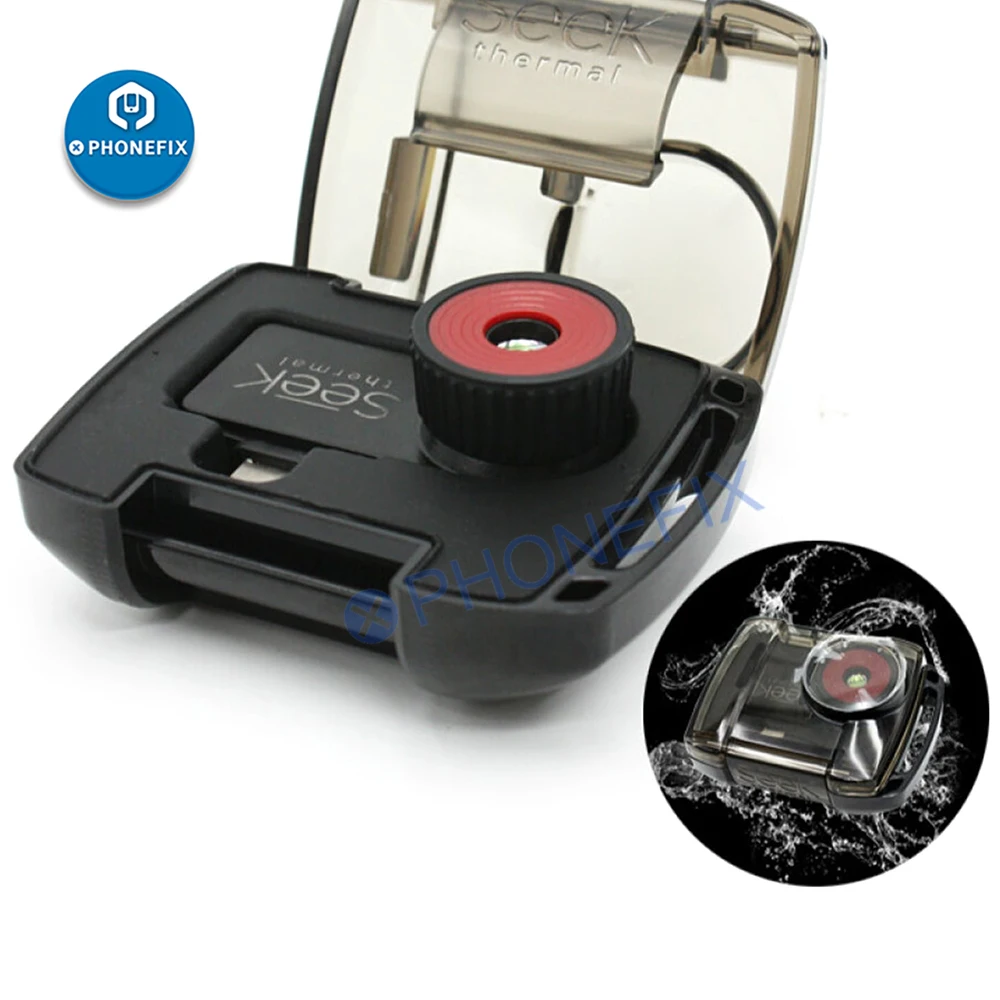

Waterproof Case Included
Photos & Videos
Spot Temperature
High-Low Temperature
Threshold Mode
9 Color Palettes
Auto & Span/Level Control
Adjustable Emissivity

2. Seek ThermalCompact XRfor IOS/Android
* 206 x 156 Thermal Sensor
* 20° Field of View
* < 9 Hz Frame Rate
* 1800 ft. Detection Distance
* Focusable Lens
* -40F° to 626°F Detection
* Waterproof Case Included
* Photos & Videos
* Spot Temperature
* High-Low Temperature
* Threshold Mode
* 9 Color Palettes
* Auto Mode Only
* Auto Emissivity

3. Seek Thermal Compact for IOS/Android
206 x 156 Thermal Sensor
36° Field of View
< 9 Hz Frame Rate
1,000 ft. Detection Distance
Focusable Lens
-40F° to 626°F Detection
Waterproof Case Included
Photos & Videos
Spot Temperature
High-Low Temperature
Threshold Mode
9 Color Palettes
Auto Mode Only
Auto Emissivity
